Separate lines waterfall

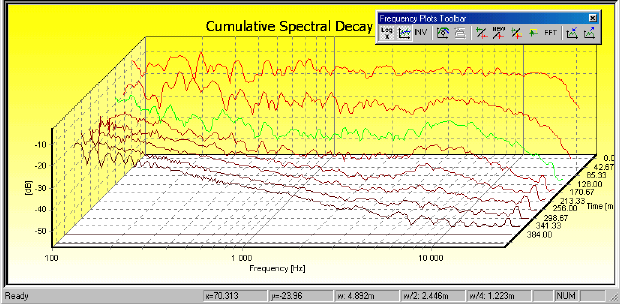

The waterfall plotted as separate lines.

The first advantage of this mode is that slices containing more than 2000 points can be plotted. This is not possible with the other two modes, so if more than 2000 points are tried to be plotted WinMLS automatically switches to this mode.

The second advantage of this mode is that the and buttons on the Frequency Plots toolbar can be used to set the active slice for reading cursor values on the Status Bar (displayed at the bottom of the WinMLS area as shown in the figure above).
