Record stimulus on DAT

If you want to use a CD-player or a device that plays a .wav-file and can use a single sweep as stimulus, it is recommended that you use the procedure given in the Measure with signal from a CD-player section.

Otherwise, you can follow this section where you can use use your own measurement parameters, but it is recommended that you record a signal with long duration to your DAT/MD/CDR player.

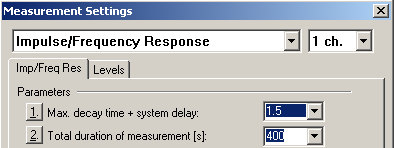

Go to Measurement->Settings... and type in a duration of e.g. 400 seconds as shown in step 2 below

Now connect the DAT player input to the left sound card output and start the measurement (Measurement->Start). Then start recording on your DAT/MD/CDR player.

After finishing the recording, you should decrease the total duration of the measurement. In the example below, it is set to 20 seconds.

Note that the other parameters must not be changed. Therefore we recommend that you save the setup (Setups->Store... ).
